Description
Specifications:

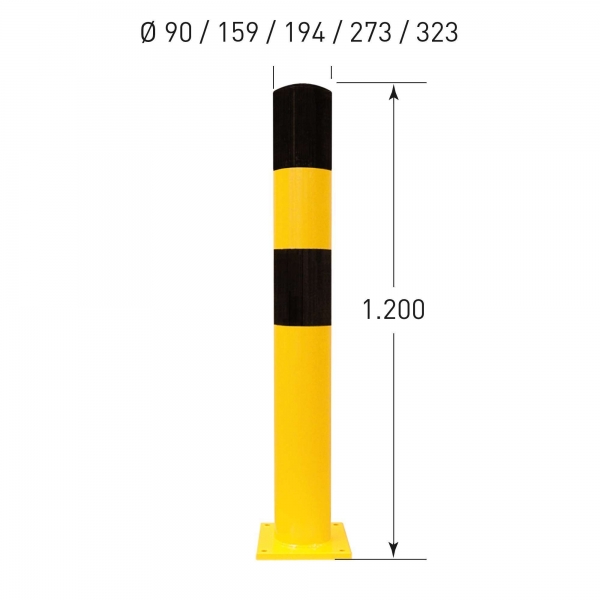

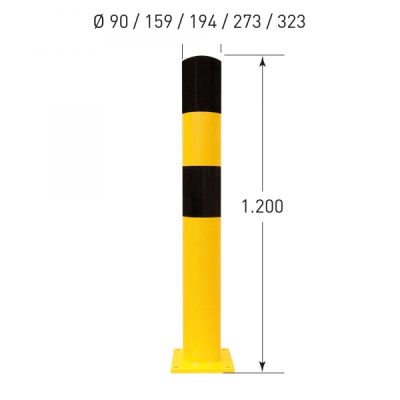

- Height: 1,200mm above surface

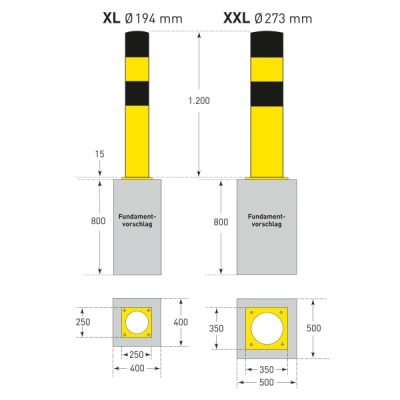

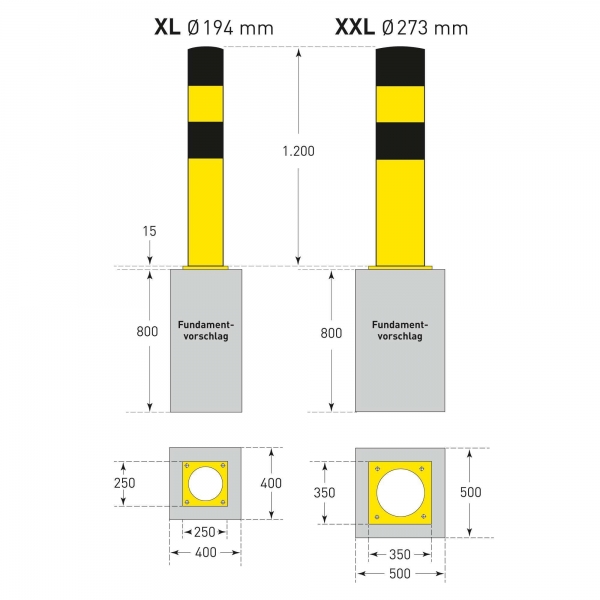

- Fixing: Surface – Surface plate with pre-drilled 4 fixing holes/8 fixing holes (3XL). Sub-surface – 400mm depth with ground anchor
Finishes:
- Hot Dip Galvanised and Powder coated yellow with black bands
- Types ‘S’ and ‘L’ also available in HDG & Powder coated White/Red
- Types ‘S’ and ‘L’ also available in Powder coated only Yellow/Black for indoor use

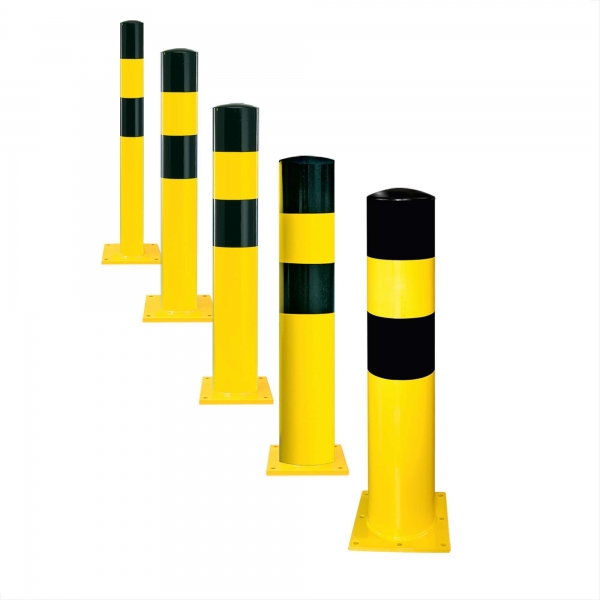

Dimension options:
Protection Bollard ‘S’
- Diameter: 90mm
- Wall thickness: 3.6mm
- Suitability: Medium to heavy impacts
Protection Bollard ‘L’
- Diameter: 159mm
- Wall thickness: 4.5mm
- Suitability: Heavy impacts
Protection Bollard ‘XL’
- Diameter: 194mm
- Wall thickness: 4.5mm
- Suitability: Very heavy impacts
Protection Bollard ‘XXL’
- Diameter: 273mm
- Wall thickness: 5.0mm
- Suitability: Extremely heavy impacts
Protection Bollard ‘3XL’
- Diameter: 323mm
- Wall thickness: 6.3mm
- Suitability: Extremely heavy impacts
-
Characteristics of the article 199.22.056
Material Top grade steel Finish hot-dip galvanised and powder-coated Colour yellow/black Overall height 1200 mm Height above ground 1200 mm Diameter 323 mm Material Thickness 6,3 mm Fixture for screw anchoring Applications indoor and outdoor Type 3XL Floor plate dimensions 450 x 450 x 15 mm Number of anchors 8 Weight 89,60 kg
