Description
Specifications:
- Height: 1,200mm above surface
- Fixing: Surface – Surface plate with pre-drilled 4 fixing holes/8 fixing holes (3XL). Sub-surface – 400mm depth with ground anchor
Finishes:
- Hot Dip Galvanised and Powder coated yellow with black bands
- Types ‘S’ and ‘L’ also available in HDG & Powder coated White/Red
- Types ‘S’ and ‘L’ also available in Powder coated only Yellow/Black for indoor use
Dimension options:
Protection Bollard ‘S’
- Diameter: 90mm
- Wall thickness: 3.6mm
- Suitability: Medium to heavy impacts
Protection Bollard ‘L’
- Diameter: 159mm
- Wall thickness: 4.5mm
- Suitability: Heavy impacts
Protection Bollard ‘XL’
- Diameter: 194mm
- Wall thickness: 4.5mm
- Suitability: Very heavy impacts
Protection Bollard ‘XXL’
- Diameter: 273mm
- Wall thickness: 5.0mm
- Suitability: Extremely heavy impacts
Protection Bollard ‘3XL’
- Diameter: 323mm
- Wall thickness: 6.3mm
- Suitability: Extremely heavy impacts
-

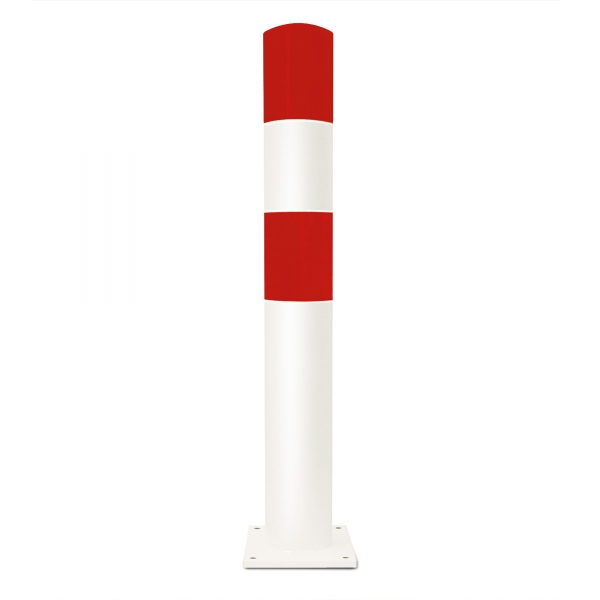

Characteristics of the article 199.88.077
Material Top grade steel Finish hot-dip galvanised and powder-coated Colour red/white Overall height 1200 mm Height above ground 1200 mm Diameter 159 mm Material Thickness 4,5 mm Fixture for screw anchoring Applications indoor and outdoor Type L Floor plate dimensions 250 x 250 x 15 mm Number of anchors 4 TÜV Approved according to DGUV 108-007 Weight 33,50 kg
