Description

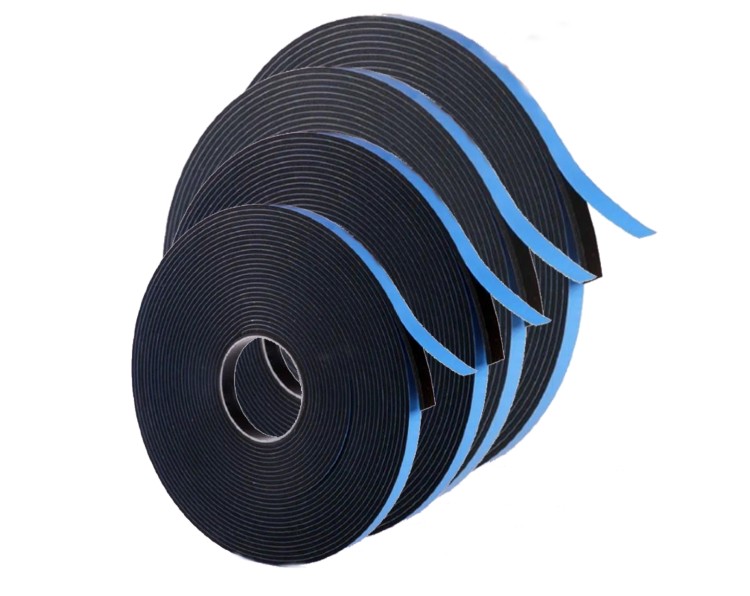

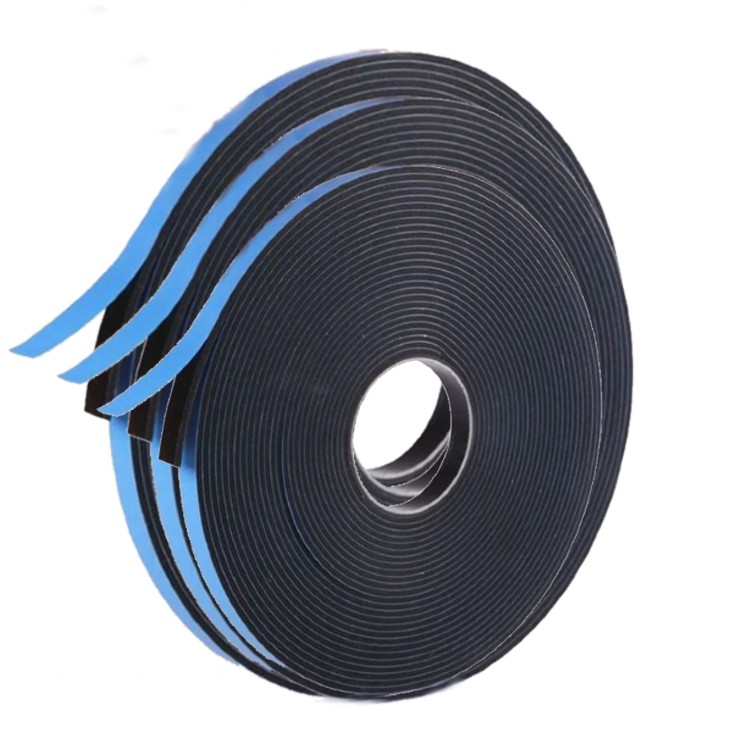

This Structural Spacer tape is used as a spacer element between the insulated glass unit and the frame during structural glazing fabrication.
Application:
- Commercial window and door systems and skylight/canopy systems
- Residential window fabrication
- Vibration damping
- Curtain wall
- Standard width size options: 6mm, 9mm, 10mm,12mm, 15mm, 20mm and 25mm
- Standard thickness options: 3mm, 4mm, 5mm, 6mm, 8mm and 9.5mm.
- Bespoke width options available too, give us a call on 01282 930195.

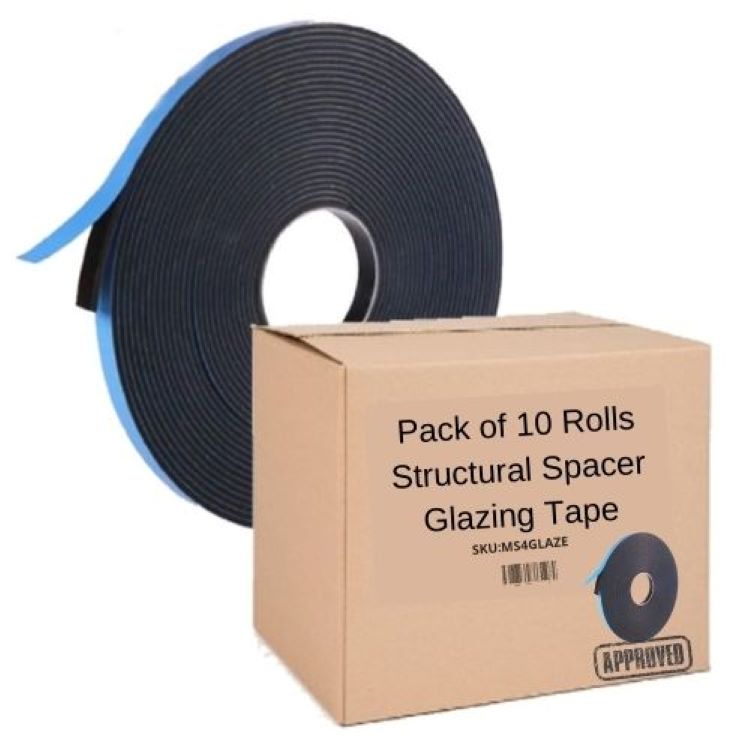

- Pack of 10 Roll. (8mm thick x 20mm wide x 7.5m long).
GENERAL CHARACTERISTICS VALUE STANDARD
Density: 300 kg/m³ —-
Tensile Strength: 500 kpa min DIN 53571
Elongation: 150% min DIN 53571
Tear Strength: 2.5 kg/cm min DIN 53515
Compression Set: 10% max. DIN 53572
Final Recovery: 90-98% DIN 53572
Shelf life: 1 year
For more information request datasheet.
